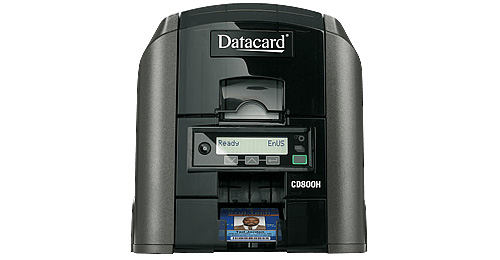

Datacard CH800H ID Card Printer
Overview
The CD800H card printer is PC-less, so it does not require a control terminal, and it is a medical examination ticket issuing machine that can issue medical examination tickets online with his cooperation. There is no hassle of securing a place to install due to system deployment.
In addition, it can be operated offline* using PC and card issuance software.
*Windows ® 7 only
Features
Smart Design
Since it is equipped with a function that controls the cooperation with his as standard, installation of OS and printer driver at the time of installation is not required. Since encoding and Kanji printing can be processed in one pass without taking up a place, smart medical examination ticket issuance work is possible.
Print Performance
It is compatible with double-sided printing as well as full color and monochrome, and processing speed is fast, and high-quality cards can be issued. print text, logos, barcodes, illustrations, and other graphic data directly on the card at a high density of 300 dpi on the front and back of the card and on the entire card (no margins).
* font size can be set freely.
Encoding Function
JIS type Hi-Co, Lo-Co encoding compatible, can be magnetically encoded on the front and back of the card by setting.
Support
In addition to a worry-free on-site maintenance system, it is designed to reduce daily maintenance burdens. The LCD display on the front of the printer displays the status of the printer and error messages for smooth support.
Supplies
Replacing the print ribbon is easy.
Optional
- JIS II type magnetic stripe encoding
- ISO (IATA/ABA) type magnetic stripe encoding support possible (inquiries required)
- Smart card (IC chip) writing: contact type/contactless correspondence.
Specifications
BODY SPECIFICATIONS
Print Type
- Full color (single side)
- Monochrome (single side)
Maximum Issuance Speed1
- Full color: 18[YMCKT]
- Monochrome:
- 8[K]
- 12[Magnetic+K]
Printing Method
- Full color: sublimation type thermal transfer method/direct printing
- Monochrome: molten heat transfer method/direct printing
Print Tone
- Full color: 256
Printed Surface
- One-sided or double-sided
Printable Area2
- Full
Card-in-Slot/Input Hopper (allowable number of sheets/feed method)3
- 100/automatic feed
Number of Output Hoppers Allowed (sheets)3
- 25
Reject Stacker Capacity (sheets)3
- About 10
Print Ribbon
- Cartridge type
Print Head
- Simple Replacement
Interface
- USB2.0
- 10/100 Base-T/TX Ethernet
- RS-232C Connection Possible (ethernet converter required)
Compatible OS
- Windows drivers
Online Ready
- Various medical systems
Character Type (planned)
- JIS X0208 (JIS90) or JIS X0213 (JIS2004)
- 1st level Kanji 2965 characters, 2nd level Kanji 3390 characters + IBM extended 388 characters
- External character support other than the above is discussed separately.
Barcode
- NW7
- CODE39
- CODE128
- UCC/EAN-128
- QR
Magnetic Encoding
- JIS: Hi-Co, Lo-Co
IC Encoding
- Optional
PHYSICAL SPECIFICATIONS4
Body Dimensions (WxDxH: mm)
- 224 x 538 x 224
Body Weight (kg)
- 5.4
Packaging Dimensions (WxDxH: mm)
- 292 x 612 x 413
Package Weight (kg)
- 9.0
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature (℃)
- 15-35
Operating Humidity (% RH)
- 20%-80% (no condensation)
OTHER
Conformity Standards, etc. (safety/environment)
- UL, VCCI, RoHS directive compliant, PSE mark (Electrical Appliance and Material Safety Law)
Standard Warranty
- Maintenance contract
COMPATIBLE CARD SPECIFICATIONS5
Standard or Brand
- Conforms to JIS-X6301ID-1 Card
1 Varies depending on the design to be printed and the amount of data.
2 Depending on the design, it may be necessary to adjust the print position. It cannot be printed on magnetic stripes, IC chips, sign panels, and around 2.5 mm. We recommend that you test with your card. Please contact us for details.
3For 0.76mm thickness.
4Both sides are supported and do not have an option.
5We recommend testing with your card. Please contact us for details.
