End of Life Product

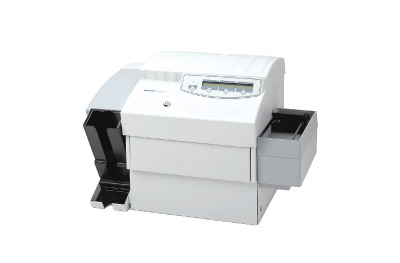

Datacard DC280PM Card Printer
Overview
The DC280PM automatic issuance system is an easy-to-operate embosser that supports the efficiency of medical operations.
Features
Embossed
- Embosses names, patient (id) numbers, etc.
Topper
- The embossed part is clearly colored, and it can be emphasized in an easy-to-see manner.
Magnetic stripe encoding
- Magnetic stripe encoding compatible with JIS II type is possible. high coercivity support is also possible as an option. you can also use your medical examination ticket as an access card.
Compact and quiet design
- Compact and lightweight design that takes up less space. in addition, the sound during embossing was also suppressed much quieter.
Optional
- IC card reader/lighter option can be added
Specifications
Magnetic encoding1
- JIS II type (NTT)
Number of embossed type
- standard 78 characters implementation (maximum: 99 characters)
- Katakana 48[A-N, Wo, ー]
- English 5[F, M, S, T, H]
- Symbol 20[1/7: 0-9, 1/10: 0-9]
- Format Up to 11 lines
- Pitch 1/7, 1/10
Topping and throughput
- 250 pages/hour (3 line embossed/encoded/tipping)
Number of input hoppers
- 1
Input hopper (allowable quantity: number)
- 200
Output tray (allowable quantity: number)
- 170 (in conjunction with reject tray)
Reject tray (allowable quantity: number)
- 170 (in conjunction with reject tray)
Indent
- Yes (optional)
Interface
- RS-230C/ethernet (converter required)
Electrical Specifications
- AC100V 50/60Hz
Power consumption2 (maximum: W)
- 400
Body dimensions
- 641 x 451 x 412
Body weight (kg)
- 55.8
1 Conforms to the Annex (regulations) in JIS Standard X-6302
2 Depends on the processing contents
