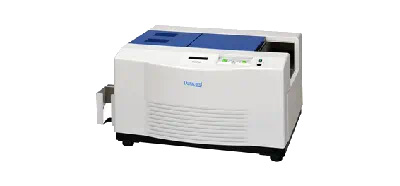

Datacard DC250 Card Printer
Overview
The DC250 instant card issuer is a desktop card issuer that issues magnetic encoding, embossing, tipping, and high-quality cards in one pass. With high-speed automatic processing, you can issue and hand over cards on the fly, so you don't have to wait for customers.
In addition to cash cards, it is possible to support various cards such as employee id cards and membership cards.
Features
Magnetic encoding
- Data is written on JIS II type magnetic stripes, and high-quality cards are issued
Embossed
- The letter is engraved (relief) on the examination ticket in uneven print.
Tipping
- Embossed characters are colored to increase character visibility and expand the range of card design.
Card end detection function
- It is a function to check the remaining number of cards and to let you know that the number of cards has become zero.
Security
- Increase security by using two different keys.
Optional
- Keyboard and connection connectors
- Back magnetic encoding
Specifications
Magnetic stripe encoding1
- JISII encoding Top or back
Embossed
- standard 74-character implementation (up to 98 characters)
Tipping and processing speed2
- 250 pages/hour
Number of input hoppers
- 1
Allowable number of input hoppers
- 250 sheets
Allowable number of output hoppers
- 30 sheets
Interface
- SERIAL/LAN (optional)
Electrical specifications
- AC100V 50/60Hz
Power consumption
- 400W (including tipping heater)
External dimensions (width x height x depth)
- 603mm x 337mm x 470mm
Body weight
- 50kg
1 Conforms to the Annex (regulations) in JIS Standard X-6302
2 Depends on the processing contents
