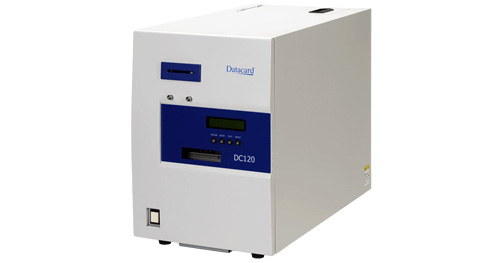

Overview

The DC120 instant card issuer is a desktop card issuer that quickly issues high-quality cards with magnetic encoding, embossing, and tipping. Tt is an entry model to consolidate the functions necessary for card issuance and to use it at an affordable price.

In addition, it is possible to support not only cash cards but also various cards such as employee id cards and membership cards, and since cards can be issued and handed over immediately on the spot, it is convenient without waiting for customers.

Features

Magnetic encoding

  • Data is written on JIS II type magnetic stripes, and high-quality cards are issued

Embossed

  • The print is engraved (embossed) on the card in uneven print.

Tipping

  • Embossed characters are colored to increase character visibility and expand the range of card design.

Card end detection function

  • This function checks the number of cards and notifies you that the remaining number of cards has become 0.

Security

  • It is possible to lock the device with a password.

Optional

  • Keyboard
  • Back magnetic encoding

Specifications

Magnetic stripe encoding1

  • JISII encoding Top or back

Embossed

  • standard 70-character implementation (up to 80 characters)

Tipping and processing speed2

  • 100 pages/hour

Number of input hoppers

  • 1

Allowable number of input hoppers

  • 100 sheets

Allowable number of output hoppers

  • 15 sheets

Interface

  • SERIAL/LAN (optional)

Electrical specifications

  • AC100V 50/60Hz

Power consumption

  • 380W (including tipping heater)

External dimensions (width x height x depth)

  • 315mm x 480mm x 600mm

Body weight

  • 40kg

1 Conforms to the Annex (regulations) in JIS Standard X-6302

2 Depends on the processing contents
