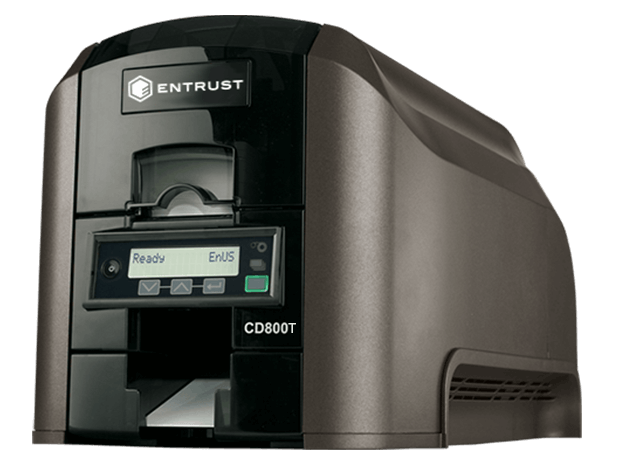

Datacard CD800T ID Card Printer
Overview
Datacard CD800T is a packaged solution for entering information on a tablet and performing card issuance processes. A series of processes on the fly, from photography and data entry to issuance, and card handing.
Features
Card Issuance At Will
By connecting the printer and the tablet via wireless LAN, it is now possible to shoot in a free position away from the printer installation position.
Compact Equipment Configuration
By adopting a tablet as a card issuing terminal in a PC-less configuration, the peripheral configuration required for card issuance has been reduced. it's easy to set up and easy to carry where you need it.
Easy Operation
The intuitive operation of the tablet has made publishing operations simpler and smoother. It also improves the efficiency of publishing operations. In addition, it is easy to exchange supplies such as printed ribbons.
High-Quality Print Performance
With card front printing with no margins left, it is possible to issue a card with a high quality and clean finish. Graphic data such as face photos, logos, barcodes, and illustrations are printed at a high density of 300 dpi and crisp.
Optional
JIS II type magnetic stripe encoding
Specifications
CD800T set contents
- tablet
- wireless LAN access point
- LAN cable
What is not included in the package content?
- card issuing printer (single and double-sided)
- Card issuance app for tablets (Android compatible)
About card issuance app for tablet
- Supported OS: Android OS ver3.1 - 4.0.3
- display resolution 1280×800
Body Specifications
Print type
- full color (single/double sided)
- monochrome (single-sided/double-sided)
Maximum print speed1 (normal mode: seconds per sheet)
- full color: 15/34
- monochrome: 4.6/9
Print method
- full color: sublimation type thermal transfer/direct printing
- monochrome: melt-type thermal transfer/direct printing
Print resolution (dpi)
- 300 x 300
Print gradation
- full color: 256
Printed surface
- single or double-sided
Printable area
- full
Card inslot/input hopper (allowable quantity/feed method)
- 100/automatic feeding
Allowable number of output hoppers (sheets)
- 25
Reject stacker capacity (sheets)
- about 10
Print ribbon
- cartridge method
Printhead
- simple replacement
Interface
- USB2.0
- 10/100Base-T/TX Ethernet RS-232C (Ethernet Converter Required)
Electrical specifications
- AC100V 50/60Hz
Barcode
- NW7, CODE39, CODE128, UCC/EAN-128
Magnetic encoding
- JIS: Hi-Co, Lo-Co
Physical Specifications2
Body dimensions (WxDxH: mm)
- 224 x 538 x 224
Body weight (kg)
- 5.4
Packing dimensions (WxDxH: mm)
- 292 x 612 x 413
Packing weight (kg)
- 9.0
Environmental Specifications
Operating temperature (°c)
- 15～35
Operating humidity (%RH)
- 20% to 80% (non-condensing)
Other
Conformity standards, etc. (safety/environment)
- UL, VCCI, RoHS compliant, PSE mark (Electrical Appliance and Material Safety Act)
Standard warranty
- maintenance contract
Compatible Card Specifications3
Standard
- JIS-X6301compliant
1 Varies depending on the design to be printed and the amount of data
2 Both-sided support and no option
3 Testing on the card you are using is recommended. for details, please contact us.
